Precision Sheet Metal Forming & Tooling – FAST

From simple bends to complex geometries, we provide high-accuracy forming with industry-leading lead times. 55 years of expertise in transforming flat metal into 3D precision components.

  • 24-Hour Response: Quotes within one business day.
  • In-House Tooling: Low-cost, rapid-turnaround bespoke tooling manufactured on-site.
  • Precision Accuracy: High-tolerance folding (0.010mm to 1.5mm thickness).
  • Quality Assured: ISO 9001, 14001, and 45001 certified.

Discover how we can help you produce precise and intricate components.

accreditations-border
Streamlining the Metal Design Process (17)

Forming That Fits Your Tolerances and Budget

Low-Cost, In-House Tooling

We manufacture our own form tools, blanking tools and jigs in-house. By controlling the tooling process, we eliminate third-party markups and reduce lead times. You get bespoke tooling at off-the-shelf prices.

Complex Geometries Simplified

Intricate folds, half-etch forming and tight bend radii. If it can be drawn, we can form it. We specialise in components that standard press shops reject.

Material Versatility

Stainless steel, copper, brass, nickel silver and more. We stock photo-etching grade metals, ensuring uniform thickness for perfect folds every time.

Seamless Integration

The perfect partner for chemical etching. Take an etched flat blank and transform it into a 3D component, all under one roof.



A True Manufacturing Partner – We’re More Than Just Bending

  • Rapid lead times: Standard 5-10 working days. Not weeks, not months.
  • Dedicated technical support: Direct access to our engineers for design advice and feedback.
  • One-stop shop: Etch it. Form it. Plate it. No third-party logistics, no finger-pointing.
  • Exceptional repeatability for high-volume runs: Every micron counts.
  • Thickness Range – 0.012mm to 1.5mm (through etched) or up to 6mm fabricated.
etching-2

How it Works (The Process)

  • Sheet Metal Forming Landing Page

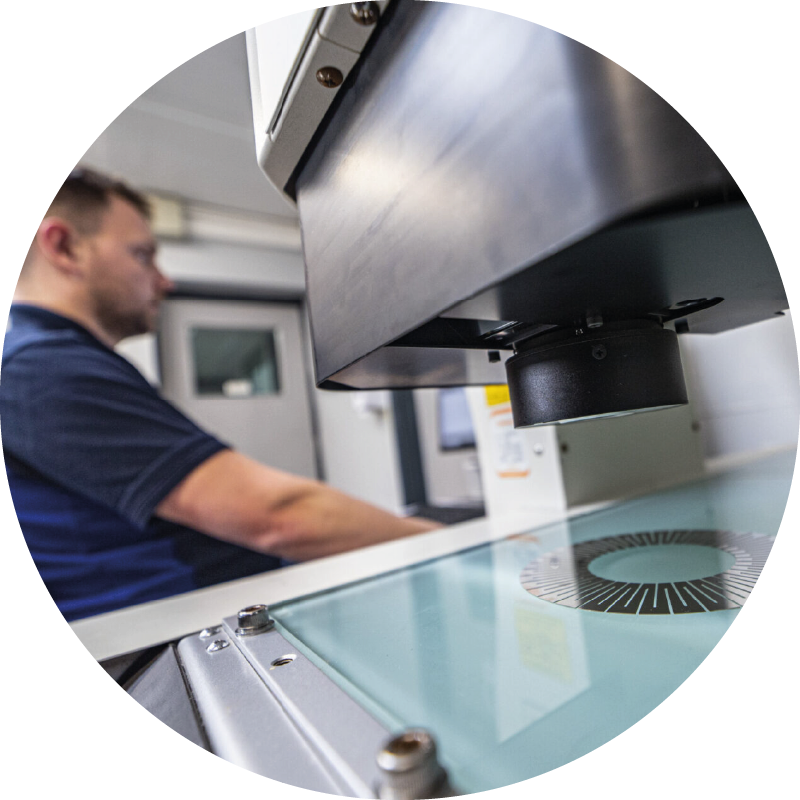

    CAD/Design & Tooling Manufacture
  • Sheet Metal Forming Landing Page_1

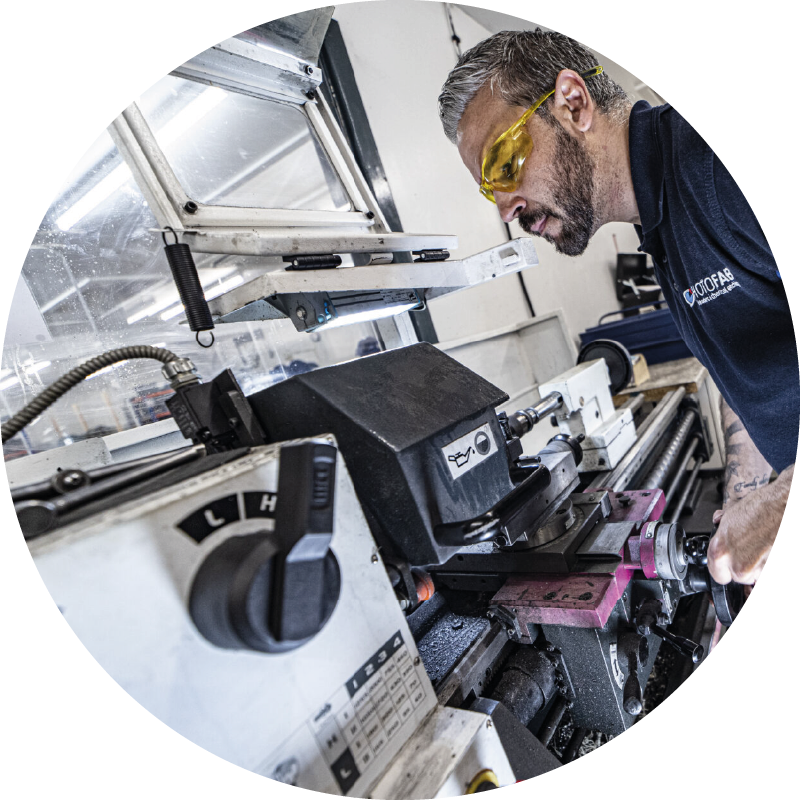

    The Forming Process (Press Braking)
  • Sheet Metal Forming Landing Page_2
    Inspection & Finishing.

CAD & Tooling Manufacture

We receive your drawing and manufacture bespoke tooling in-house using surface grinding, milling, and turning.

The Forming Process

Precision press braking using CNC-controlled equipment. From simple 90° bends to complex multi-bend geometries.

Inspection & Finishing

Dimensional inspection and surface finishing. Spot welding, soldering, and deburring are available in-house.

Photofab-BC-landing-page-01-1

Need help defining your requirements?

Avoid common design mistakes and prepare your project before requesting a quote. Download the Chemical Etching Design Guide below.

Download Our Guide
